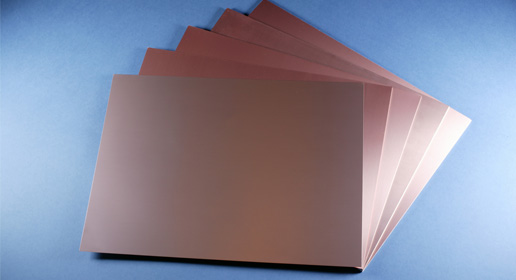

TMM® 6 Laminates

TMM 6 laminates offer a combination of the benefits of both ceramic and traditional PTFE microwave circuit laminates without requiring the specialized production techniques common to those materials, all at a unique dielectric constant (Dk) compared to other materials in the product family.

Features

• Dk of 6.0 +/- .080
• Dissipation factor of .0023 at 10GHz
• Thermal coefficient of Dk of -11 ppm/°K
• Coefficient of thermal expansion matched to copper
• Available in a thickness range of .0015 to .500 inches +/- .0015”

Benefits

• Mechanical properties resist creep and cold flow
• Resistant to process chemicals, reducing damage during fabrication
• Based on a thermoset resin, allowing for reliable wire-bonding
• All common PWB processes can be used with TMM 6 materials

Applications

View current applications of this product.

Antenna Systems

Communications
Systems

• Antenna Systems
• Communications
  Systems
