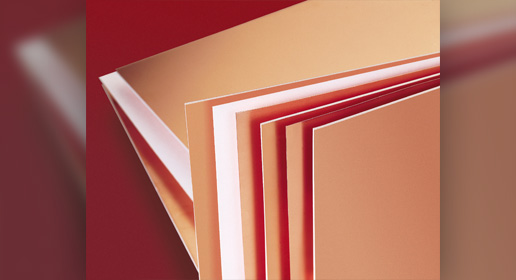

Rogers Kappa 438 laminates were designed using a glass reinforced hydrocarbon ceramic system that offers superior high frequency performance and low cost circuit fabrication resulting in a low loss material which can be fabricated using standard epoxy/glass (FR-4) processes. Kappa 438 laminates also have the UL 94 V-0 flame retardant rating and are lead free solder process compatible.
Kappa 438 laminates offer dielectric constants (Dk) tailored to FR-4 industry standard norms which facilities ease of converting existing FR-4 designs where better electrical performance is needed.
Features
Glass reinforced hydrocarbon thermoset platform
Dk of 4.38 is tailored to FR-4 industry standard norms
Tighter Dk and thickness tolerance than FR-4
Low Z Axis CTE of 42 ppm/°C
High Tg of > 280°C TMA
Meets UL 94-V0 requirements
Benefits
Ease of PCB manufacturing and assembly in Line with FR-4
