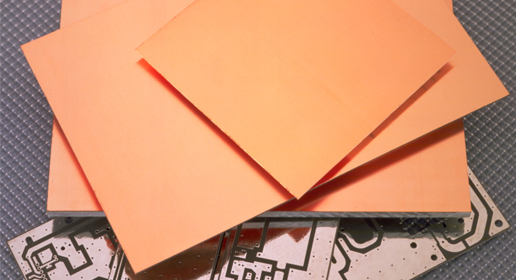

RT/duroid® 6006 and 6010.2LM Laminates

RT/duroid 6006 and 6010.2LM laminates provide high dielectric constants (Dk) to enable circuit size reduction. Both of these materials are low loss, ideal for operating at X-band or below. Additionally, their tight Dk and thickness control deliver repeatable circuit performance.

Features

RT/duroid 6006 laminates

• Dk of 6.15 +/- .15
• Dissipation factor of .0027 at 10GHz
• Clad with standard and reverse treated electrodeposited copper foil

RT/duroid 6010.2LM laminates

• Dk of 10.2 +/-.25
• Dissipation factor of .0023 at 10 GHz
• Clad with standard and reverse treated electrode-posited copper foil

Benefits

• High dielectric constant for circuit size reduction
• Low loss, ideal for operating at X-band or below
• Tight εr and thickness control for repeatable circuit performance
• Low moisture absorption
• Reliable plated through-holes in multi-layer boards
