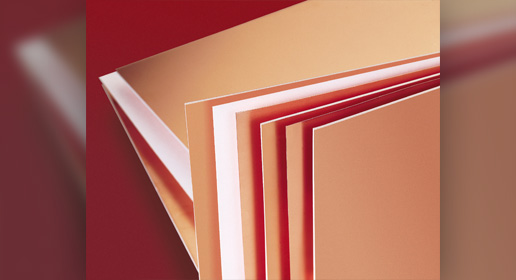

RO4700™ Antenna Grade Laminates

The resin systems of RO4700 dielectric materials provide the necessary properties for ideal antenna performance. RO4700 antenna grade laminates are fully compatible with conventional FR-4 and high temperature lead-free solder processing. These materials do not require the special treatment needed on traditional PTFE-based laminates for plated through-hole preparation. RO4700 laminates are an affordable alternative to conventional PTFE-based antenna materials, allowing for designers to optimize cost and performance.

Features

• Dielectric constant of 2.55 or 3.0 +/- 0.05
• Low Z-axis coefficient of thermal expansion at less than 30 ppm/°C
• Low TCDk
• Dissipation factors ranging from .0022 to .0029
• High Tg at greater than 280°C

Benefits

• Low insertion loss
• Dk matched to standard PTFE based antenna offerings
• Reduced passive inter-modulation (PIM)
• Consistent circuit performance

Applications

View current applications of this product.

Antennas

Carrier-Grade Wi-Fi / Licensed Assisted
Access

• Antennas
• Carrier-Grade Wi-Fi / Licensed Assisted
  Access
