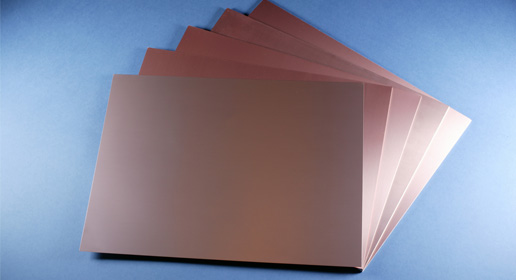

RO3035™ Laminates

RO3035 high frequency laminates are part of the RO3000® series of materials. These mechanically similar materials have differing dielectric constants (Dk) and allow designers to develop multi-layer board designs without warping or decreased reliability. RO3035 laminates provide design solutions for 5G, millimeter wave sub 6GHz and massive MiMo applications.

Features

• Dk of 3.50 +/-.05
• Dissipation factor of .0015 at 10 GHz
• Low X, Y and Z axis CTE of 17, 17 and 24 ppm/°C, respectively

Benefits

• Can be used in applications up to 30-40 GHz
• Lower operating temperature and increased reliability in power amplifiers
• Multi-site production, global availability
• Available with rolled copper

Applications

View current applications of this product.

Antenna Systems

Communications
Systems

Power Amplifiers

• Antenna Systems
• Communications
  Systems
• Power Amplifiers
