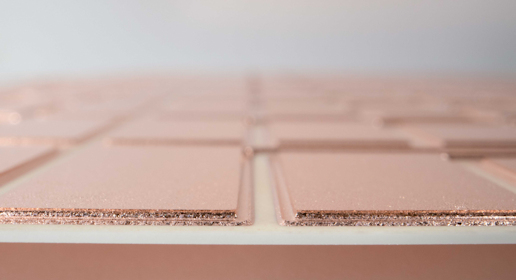

curamik® Endurance

Our curamik Endurance substrates provide enhanced reliability performance compared to material combinations of the same dimensions. This reliability improvement makes the new substrates well suited for high power applications, such as in EV/HEV, vehicle electrification, general industrial, renewable energy and mass transit. curamik Endurance extends the field of applications for DBC.

Features

Available copper thickness of 0.3 mm
Ceramic Types available include Al₂O₃ , HPS (ZTA), AlN
Thermal conductivities of 24, 26 and 170 W/mK
Ceramic available in multiple thicknesses according to standard Rogers DBC design rules

Benefits

Enhanced reliability performance compared to material combinations of the same dimensions
Suitable for high power applications
Extraordinary increased lifetime
Known material and combinations allow for easy implementation

The three curamik Endurance Substrates available include:

curamik Endurance (Al₂O₃)

Offers thermal conductivity of 24 W/mK @ 20°C
CTE of 6.8 ppm/K @ 20°C - 300°C
Available in many thickness combinations

curamik Endurance Plus (HPS)

Alumina (9% ZrO₂ doped)
Offers thermal conductivity of 26 W/mK @ 20°C
CTE of 7.1 ppm/K @ 20°C - 300°C
Available in many thickness combinations

curamik Endurance Thermal (AlN)

Based on Aluminum Nitride ceramics
Offers thermal conductivity of 170 W/mK @ 20°C
CTE of 4.7 ppm/K @ 20°C - 300°C
Available in many thickness combinations
