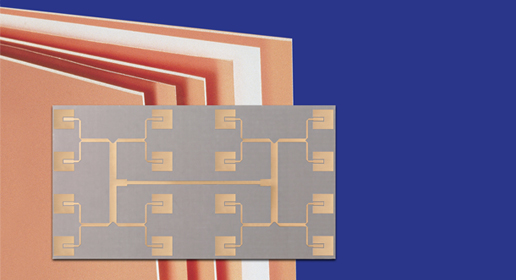

AD300D™ Laminates

AD300D laminates provide controlled dielectric constant (Dk), low loss performance and very good PIM (passive intermodulation) response. This PTFE resin based material is compatible with standard PTFE fabrication and provides a cost-effective construction to improve electrical and mechanical performance.

Features

• Low loss tangent of .0021 at 10 GHz
• Well controlled Dk of 2.94+/-0.05
• Good thermal conductivity of 0.37 W/m-K at 100°C
• Low PIM of -159dBC at 30mils
• Larger Panel Sizes Available

Benefits

• Wide range of application use
• Improved power handling
• Low loss, higher antenna efficiency
• Maintains mechanical form during handling

Applications

View current applications of this product.

Antenna Systems

Antennas

Carrier-Grade Wi-Fi / Licensed Assisted
Access

Communications
Systems

Telematics and Infotainment

• Antenna Systems
• Antennas
• Carrier-Grade Wi-Fi / Licensed Assisted
  Access
• Communications
  Systems
• Telematics and Infotainment
